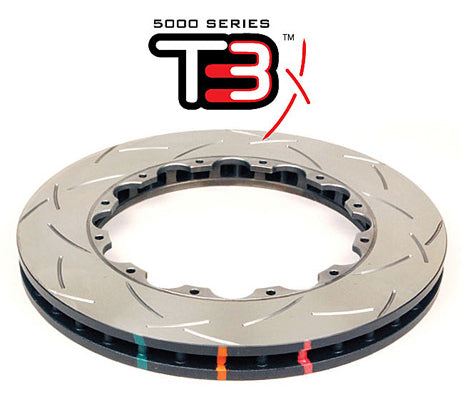

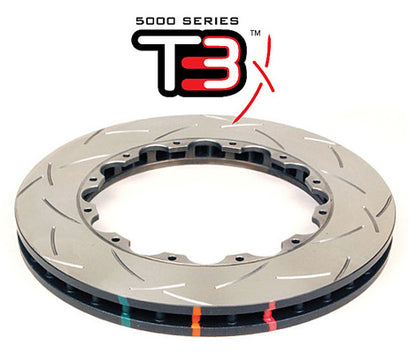

Řada 5000 - T3 drážkovaný - pouze rotor levá ruka
| Diameter [mm] |
380 |
| Thickness [mm] |
32 |
| Disc Vent |
72 Curved Vanes |
| Annulus [mm] (Maximum useable pad width) |
64,25 |
| Pitch Circle Diameter (P.C.D.) |
232 |
| Inside Diameter [mm] |
251,5 |
| Diameter & Number of Bolt Holes [mm] |
8.15 (x10) |
| Air Gap [mm] |
17 |
| Offset [mm] |
2,5 |
| Flange Inside Diameter [mm] |
207 |
| Flange Thickness [mm] |
8 |
| Hole Type |
TBA |
| Stage |
Stage 5 |
| Tech Bulletins |
Bedding in Brakes |
| Tech Bulletins |
How to clean a Disc Rotor before fitting |
| Tech Bulletins |
Motorsport - Important Info |
| Replacement Nuts |
Not Included |
