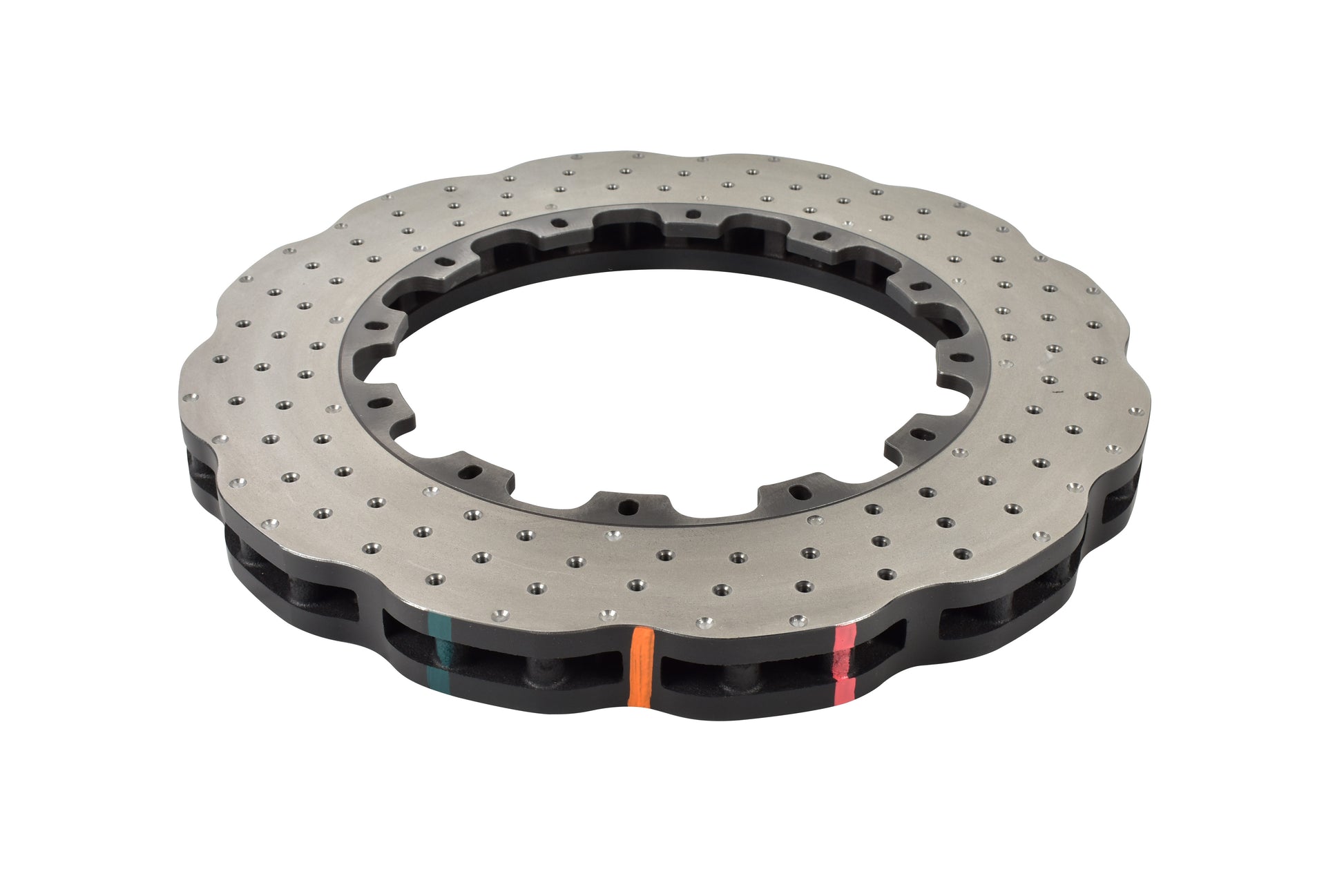

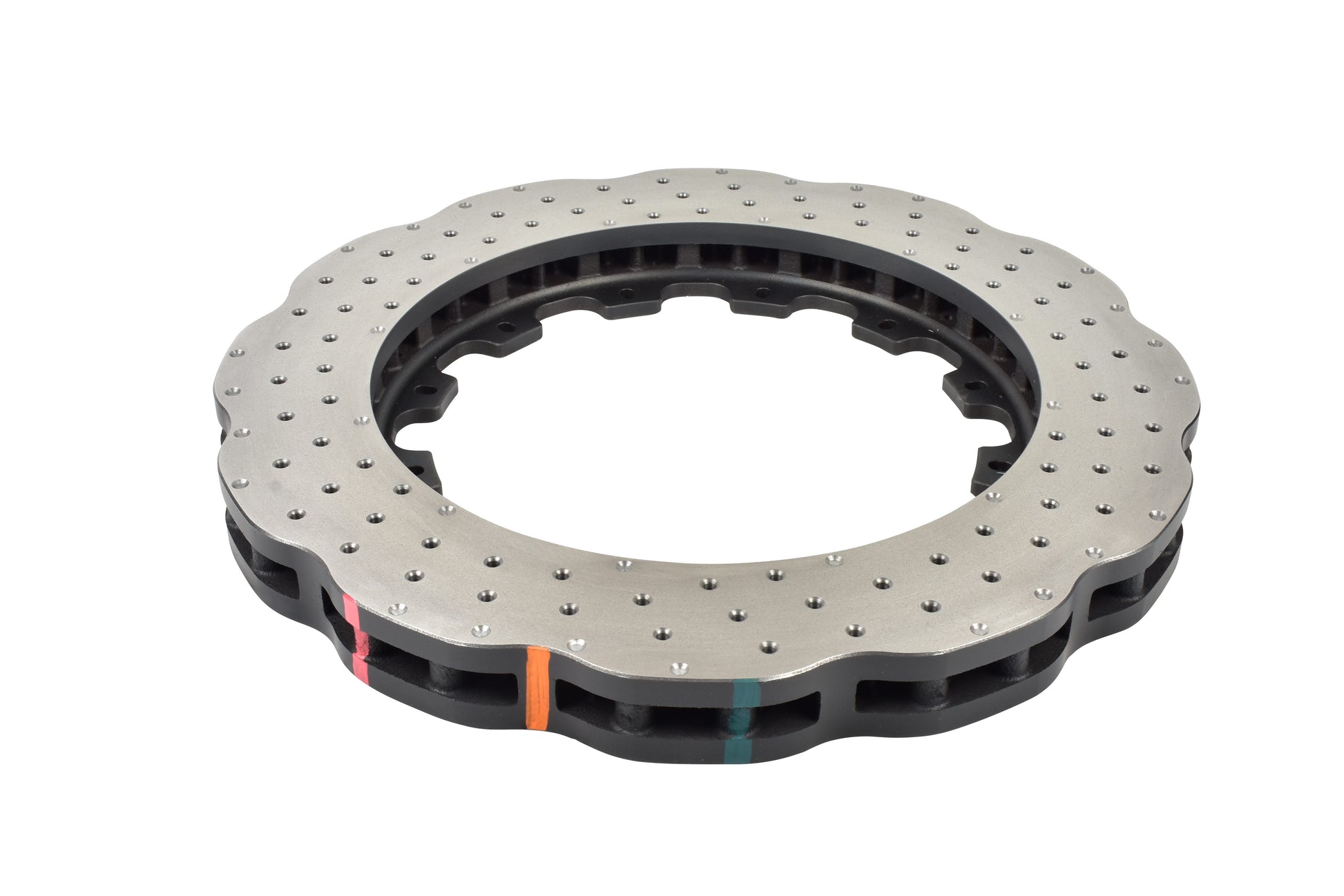

Série 5000 - Vlnitě prokružované, drážkované a přerývané kotouče - pouze rotor
| Diameter [mm] |
370 |
| Thickness [mm] |
34 |
| Disc Vent |
Kangaroo Paw |
| Annulus [mm] (Maximum useable pad width) |
59 |
| Pitch Circle Diameter (P.C.D.) |
228,6 |
| Inside Diameter [mm] |
251,8 |
| Diameter & Number of Bolt Holes [mm] |
6.4 (x12) |
| Air Gap [mm] |
13 |
| Offset [mm] |
0 |
| Flange Inside Diameter [mm] |
210 |
| Flange Thickness [mm] |
7 |
| Hole Type |
Elongated Hole |
| Stage |
Stage 5 |
| Tech Bulletins |
Bedding in Brakes |
| Tech Bulletins |
How to clean a Disc Rotor before fitting |
| Tech Bulletins |
Motorsport - Important Info |
| Replacement Nuts |
Included |
