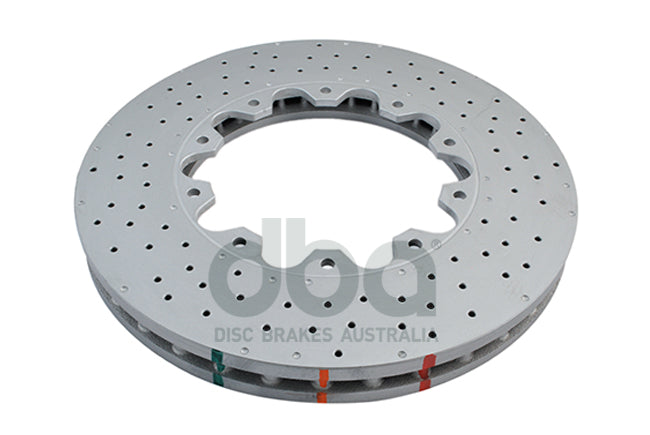

DBA52690.1XD

Řada 5000 – Vrtané křížem, drážkované a s prohlubněmi – pouze rotor

Diameter [mm]	360
Thickness [mm]	36
Disc Vent	Kangaroo Paw
Annulus [mm] (Maximum useable pad width)	72
Pitch Circle Diameter (P.C.D.)	196
Inside Diameter [mm]	216
Diameter & Number of Bolt Holes [mm]	9 (x10)
Air Gap [mm]	12
Offset [mm]	0
Flange Inside Diameter [mm]	169
Flange Thickness [mm]	7
Hole Type	Round Hole
Stage	Stage 5
Tech Bulletins	Bedding in Brakes
Tech Bulletins	How to clean a Disc Rotor before fitting
Tech Bulletins	Motorsport - Important Info
Replacement Nuts	Not Included
