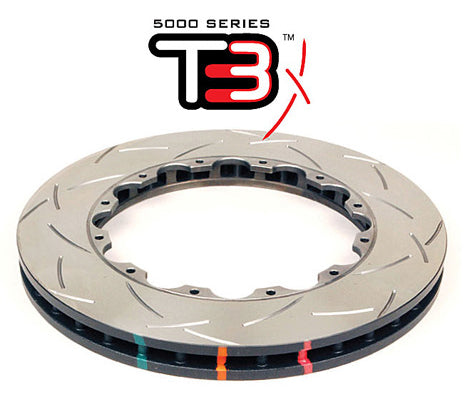

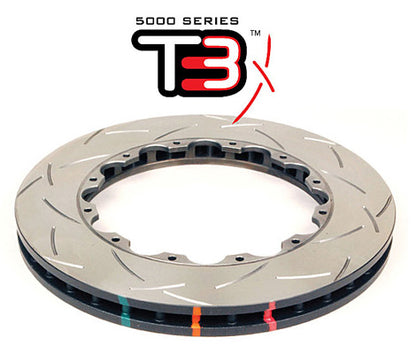

Řada 5000 - drážkovaný levý/pravý rotor pouze
| Diameter [mm] |
378 |
| Thickness [mm] |
36 |
| Disc Vent |
Kangaroo Paw |
| Annulus [mm] (Maximum useable pad width) |
70 |
| Pitch Circle Diameter (P.C.D.) |
215,9 |
| Inside Diameter [mm] |
234,7 |
| Diameter & Number of Bolt Holes [mm] |
6.4 (x12) |
| Air Gap [mm] |
18 |
| Offset [mm] |
1 |
| Flange Inside Diameter [mm] |
196 |
| Flange Thickness [mm] |
7,5 |
| Hole Type |
Round Hole |
| Stage |
Stage 5 |
| Tech Bulletins |
Bedding in Brakes |
| Tech Bulletins |
How to clean a Disc Rotor before fitting |
| Tech Bulletins |
Motorsport - Important Info |
| Replacement Nuts |
Included |
