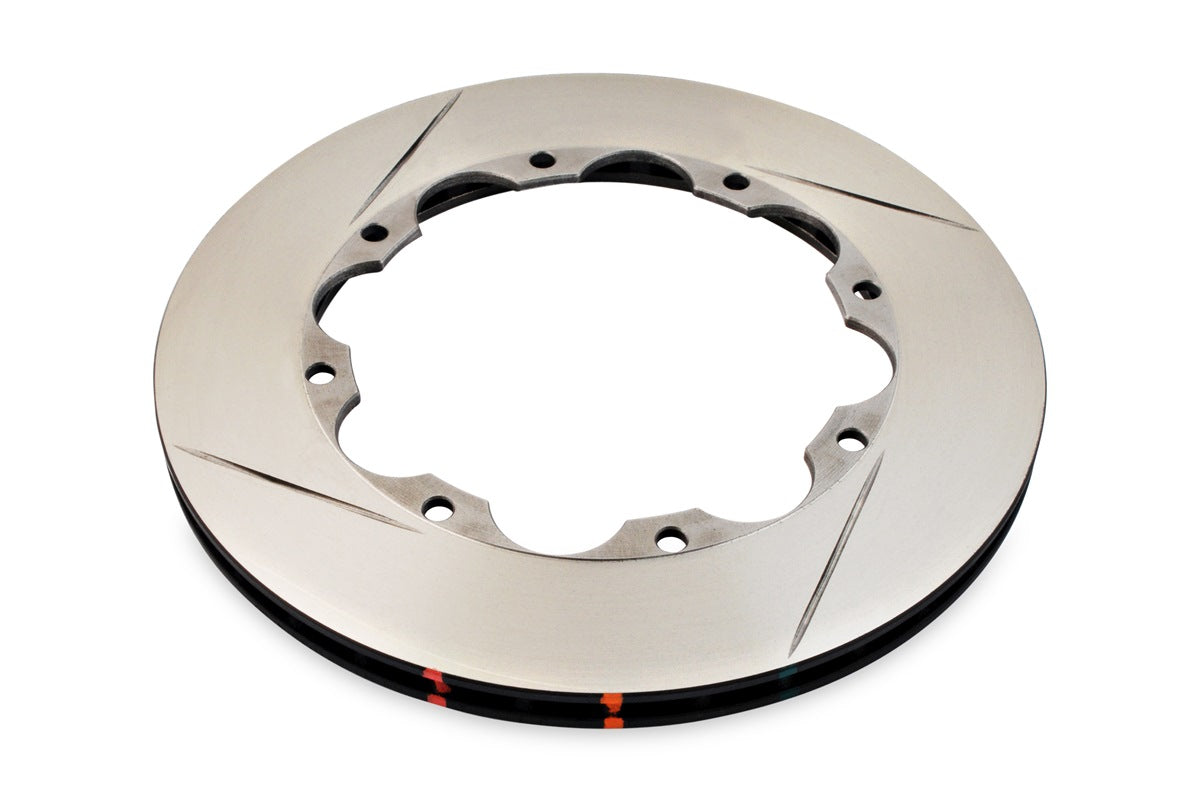

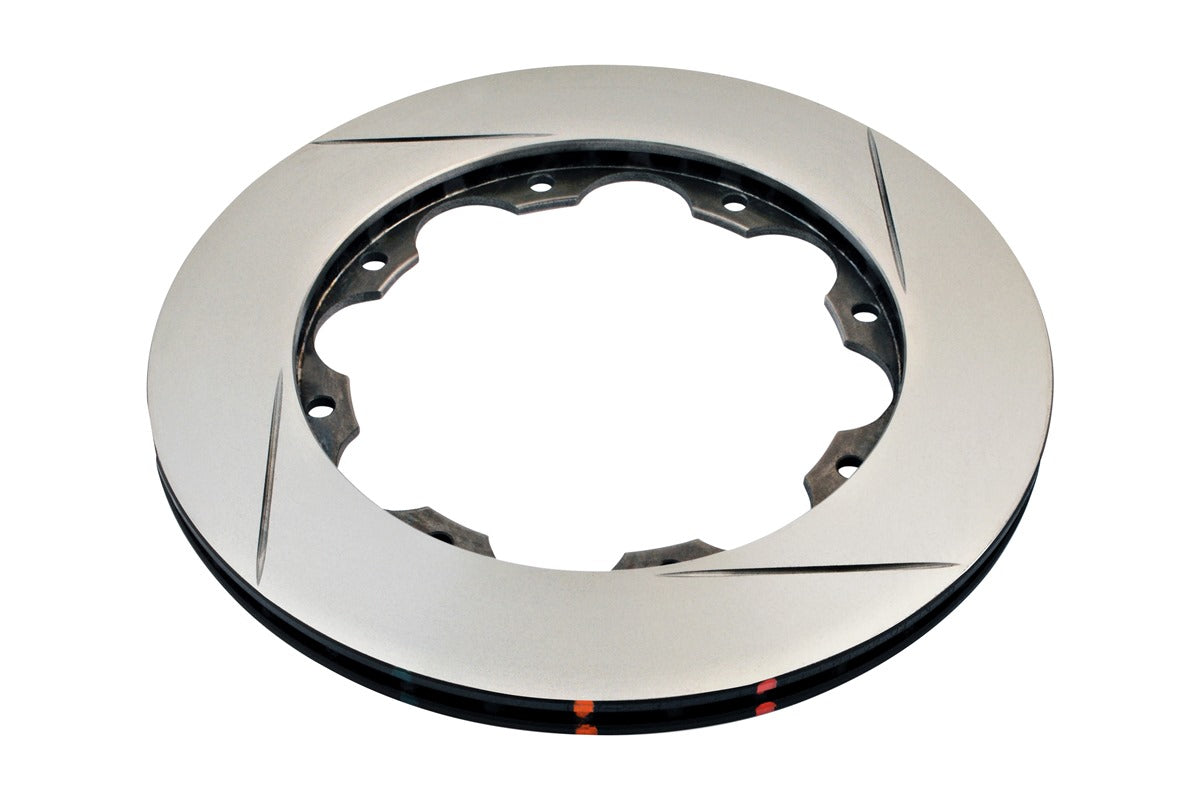

Řada 5000 - drážkovaný - rotor pouze pravý závit
| Diameter [mm] |
277,8 |
| Thickness [mm] |
15,9 |
| Disc Vent |
Kangaroo Paw |
| Annulus [mm] (Maximum useable pad width) |
45,4 |
| Pitch Circle Diameter (P.C.D.) |
176 |
| Inside Diameter [mm] |
187,5 |
| Diameter & Number of Bolt Holes [mm] |
8.45 (x8) |
| Air Gap [mm] |
6,5 |
| Offset [mm] |
0,6 |
| Flange Inside Diameter [mm] |
156,03 |
| Flange Thickness [mm] |
4,5 |
| Hole Type |
Round Hole |
| Stage |
Stage 5 |
| Tech Bulletins |
Bedding in Brakes |
| Tech Bulletins |
How to clean a Disc Rotor before fitting |
| Tech Bulletins |
Motorsport - Important Info |
| Replacement Nuts |
Not Included |
