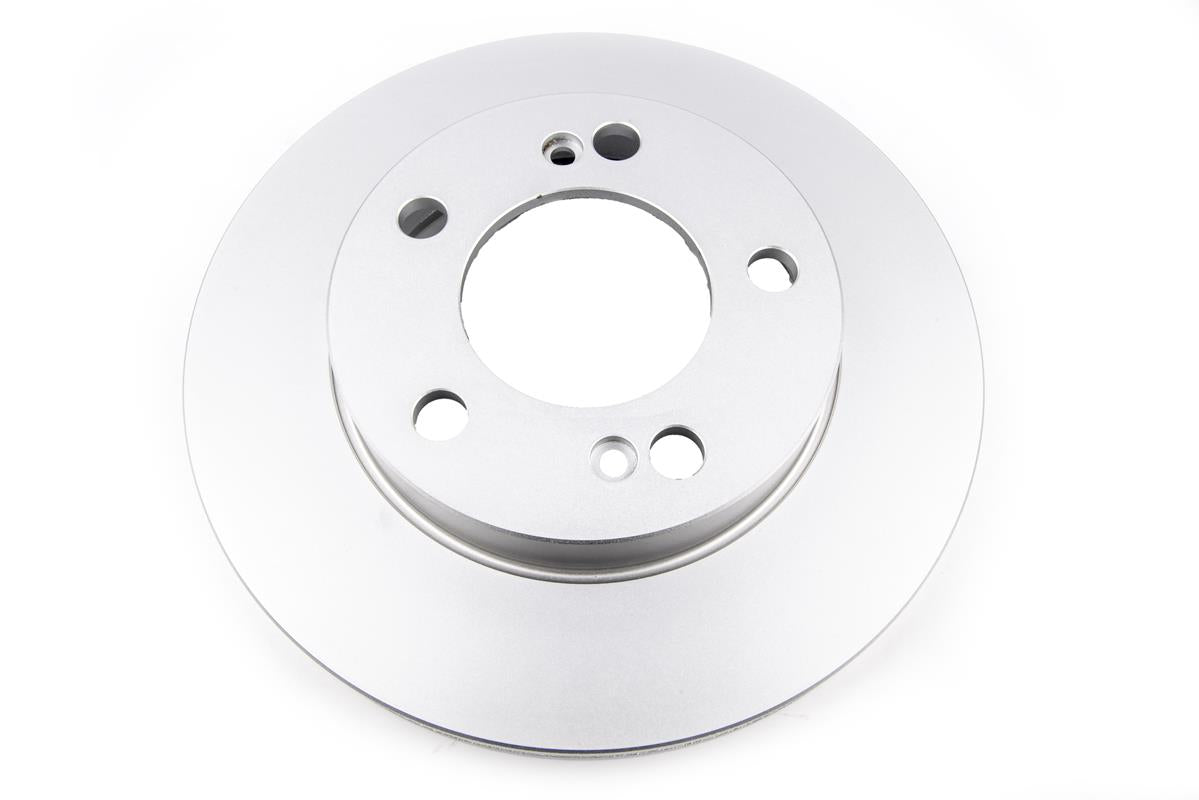

| Diameter [mm] | 294 |
| Disc Vent | Vented |
| Number of Holes | 5 |
| Inner Diameter [mm] | 85 |
| Minimum Thickness [mm] | 26 |
| Thickness [mm] | 28 |
| Height [mm] | 56.7 |
| Tech Bulletins | Bedding in Brakes |
| Tech Bulletins | How to clean a Disc Rotor before fitting |
| Tech Bulletins | Motorsport - Important Info |
| ECE R90 number | E11*90R02/06*59762*00 |
| Compatibility | ||||||
|---|---|---|---|---|---|---|
| SSANGYONG | Actyon | 2.0 TD (2006-2012) | 2006-2012 | Front | Brake Pads: DB1745 | Disc Diameter [mm]: 294 |
| SSANGYONG | Actyon | 2.3 (2006-2012) | 2006-2012 | Front | Brake Pads: DB1745 | Disc Diameter [mm]: 294 |
| SSANGYONG | Korando Sports Pick-up | 2.0 TD (2012-2016) | 2012-2016 | Front | Brake Pads: DB1450 | Disc Diameter [mm]: 294 |
| SSANGYONG | Kyron | 2.0 TD (2006-2014) | 2006-2014 | Front | Brake Pads: DB1745 | Disc Diameter [mm]: 294 |
| SSANGYONG | Kyron | 2.7 TD (2006-2014) | 2006-2014 | Front | Brake Pads: DB1745 | Disc Diameter [mm]: 294 |
| SSANGYONG | Rexton | 2.2 TD 178BHP (2015-2017) | 2015-2017 | Front | Brake Pads: DB1450 | Disc Diameter [mm]: 294 |
| SSANGYONG | Rexton | 2.7 TD (2006-2012) | 2006-2012 | Front | Brake Pads: DB1450 | Disc Diameter [mm]: 294 |
| SSANGYONG | Rexton | 3.2 (2006-2012) | 2006-2012 | Front | Brake Pads: DB1450 | Disc Diameter [mm]: 294 |
| SSANGYONG | Rexton W | 2.0 TD (2014-2016) | 2014-2016 | Front | Brake Pads: DB1450 | Disc Diameter [mm]: 294 |
