Pedders 2 Inch Suspension Lift Kit

This Premium Lift Kit is designed for Volkswagen Amarok 3.0 V6 models from 2023 onwards. It raises the vehicle by approximately 50mm to improve ground clearance and enhance ride comfort while maintaining a balanced on-road feel.

Key Features

• 2 inch suspension lift (approx. 50mm)
• Improved ride comfort
• Increased off-road ground clearance
• Adjustable TrakRyder Foam Cell shock absorbers
• Sintered iron piston shocks with large 40mm bore
• Front Ezifit Struts supplied pre-assembled
• New rear parabolic leaf springs
• 2 year / 40,000km warranty

Product Overview

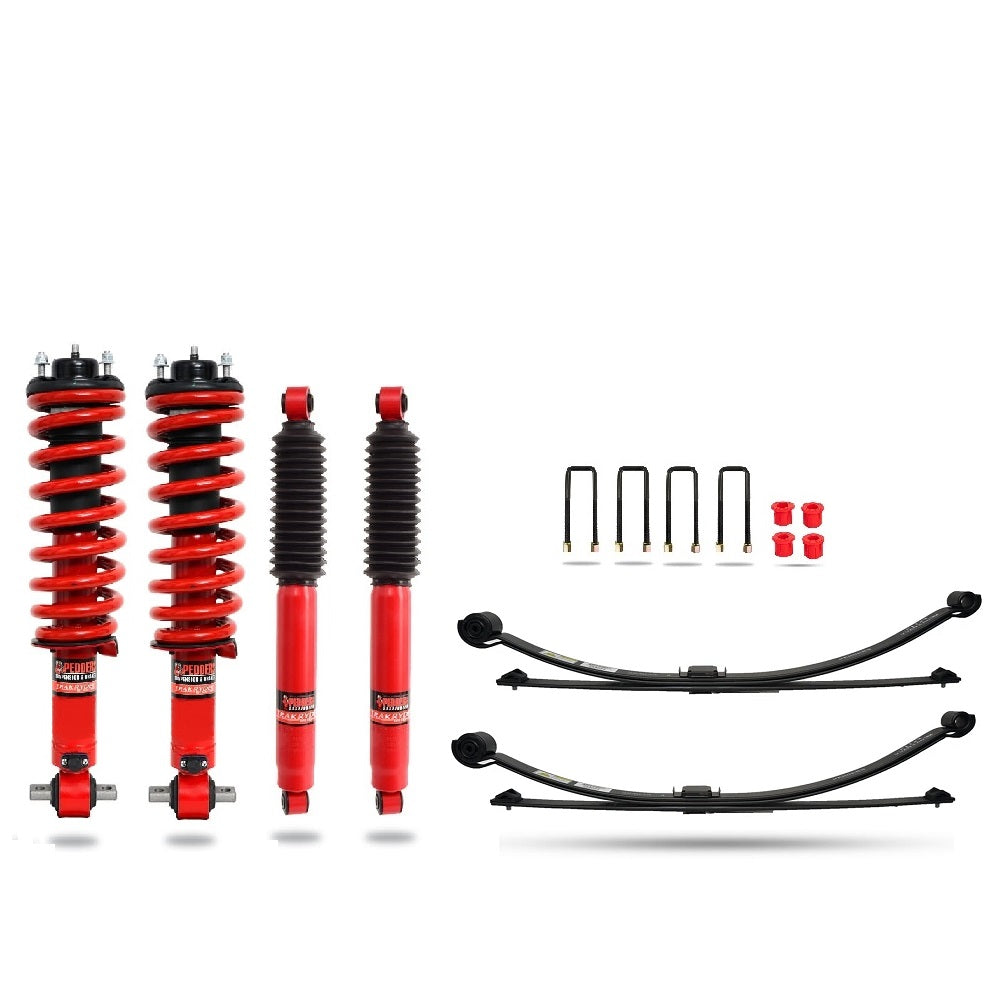

This kit replaces the original suspension components with Pedders TrakRyder Adjustable Foam Cell shocks, front Ezifit Struts and rear parabolic leaf springs, including the necessary bushes and U bolts. It is intended for vehicles that do not normally carry heavy loads, helping retain ride comfort for everyday driving and light off-road use.

The approximately 50mm lift improves appearance and allows fitment of larger tyres. Vehicles used regularly for towing or continuous heavy loads should consider one of Pedders’ heavy-duty suspension options.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.

This kit is primarily comfort-focused and is not intended for vehicles used in a continuously laden state.

Technical Specification

• Fitment: Volkswagen Amarok 2023 on, 3.0 V6 models
• Lift amount: Approximately 50mm

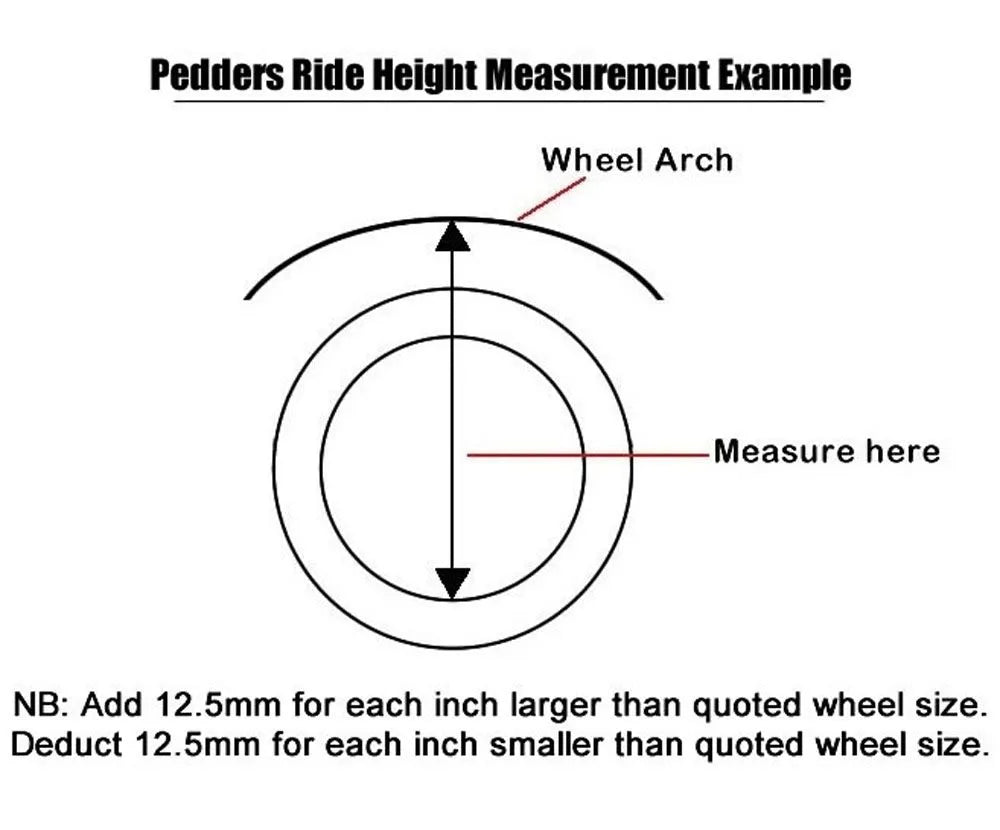

• Front height: 615mm hub centre to wheel arch
• Rear height: Approximately 50mm higher than standard
• Shock bore size: 40mm
• Included components: Front Ezifit Struts with Adjustable Foam Cell shocks, rear parabolic leaf springs, bushes and U bolts

Ride height measurements are based on a standard vehicle. Additional front accessories such as bull bars or winches may affect final ride height and could require alternative springs.

Why Choose Pedders Suspension

• Matched suspension components designed to work together as a system
• TrakRyder Foam Cell shock technology for consistent damping performance
• Ezifit Struts simplify installation and replace worn factory components
• Backed by a 2 year / 40,000km warranty
