Pedders 2 Inch Suspension Lift Kit Volkswagen Amarok 2023 on (3.0 V6 models)

This Premium Lift Kit is designed to raise the Volkswagen Amarok 2023 on (3.0 V6 models) by approximately 50mm. It improves ride comfort and increases ground clearance for enhanced appearance and light off-road use.

Key Features

• Approx. 50mm (2 inch) suspension lift
• Improved ride comfort on vehicles not normally carrying heavy loads
• Allows fitment of larger tyres
• Pedders TrakRyder Foam Cell shock absorbers
• Sintered iron piston shocks with large 40mm bore
• Premium grade steel front coil springs
• New rear parabolic leaf springs
• Ezifit Struts pre-assembled for easy installation
• Backed by a 2 year / 40,000km warranty

Product Overview

This kit replaces the original suspension components with Pedders TrakRyder Foam Cell shocks, front coil springs and new rear parabolic leaf springs, along with the required bushes and U bolts. It is designed to raise the vehicle while retaining comfortable ride characteristics for vehicles that do not regularly carry heavy loads.

Dimensions are based on a standard vehicle. Additional front-mounted accessories such as winches or bull bars may affect the final installed height and could require alternative spring rates. Vehicles used for regular towing or constant load operation should consider a heavy-duty alternative.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.

No other vehicle modifications are required. This kit is intended primarily for comfort and clearance rather than continuous heavy load or towing use.

Technical Specification

• Fitment: Volkswagen Amarok 2023 on (3.0 V6 models)
• Lift amount: Approximately 50mm

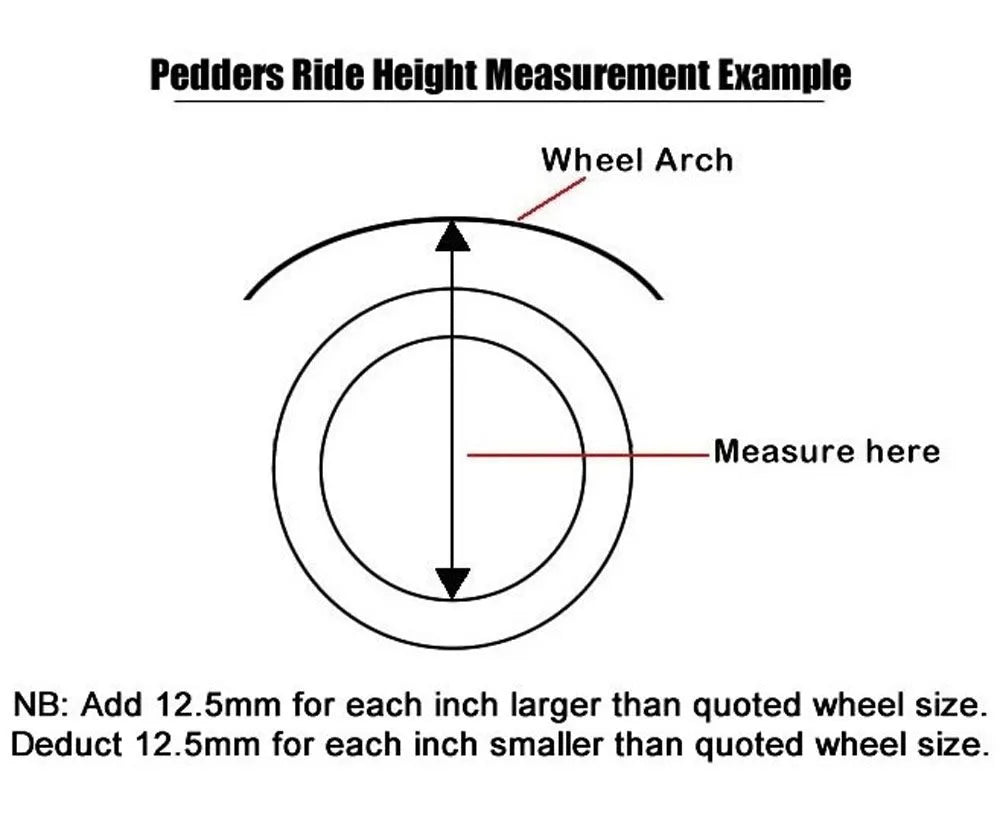

• Front height: 615mm hub centre to wheel arch
• Rear height: Approximately 50mm higher than standard
• Shock bore size: 40mm

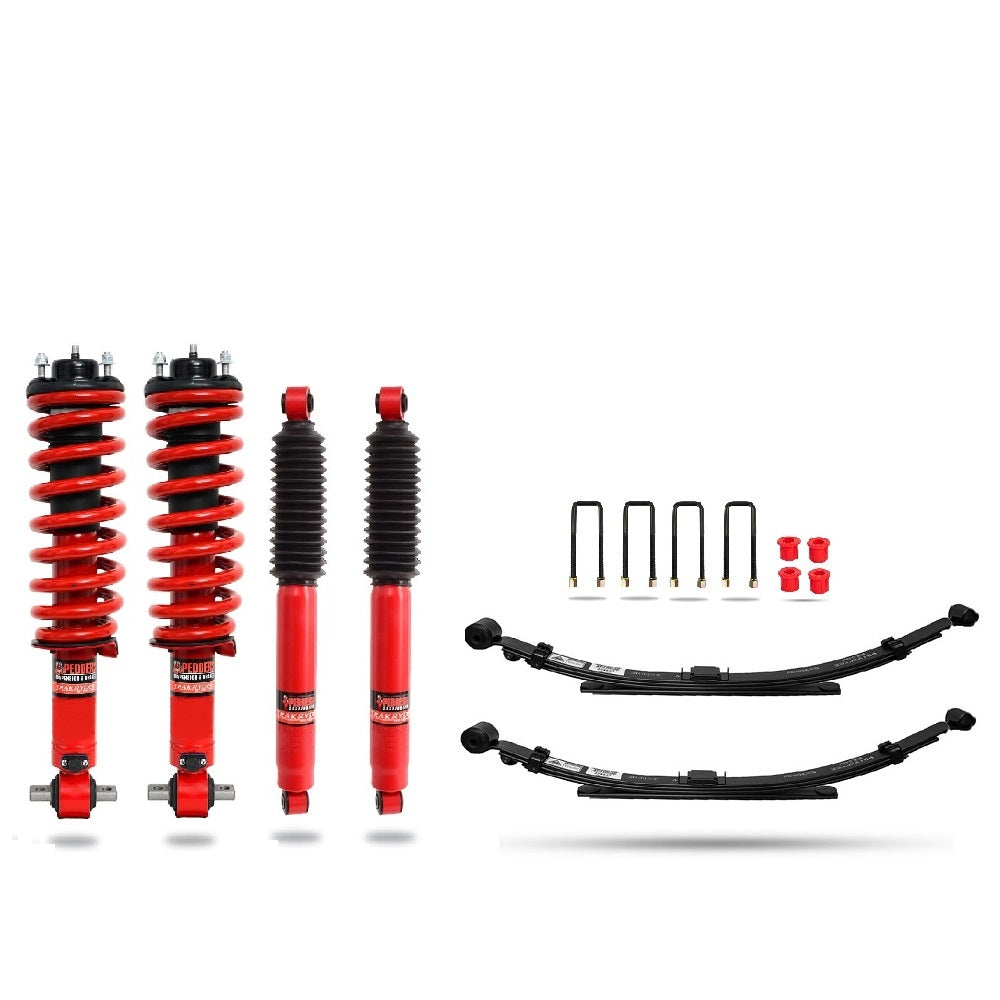

• Included components: Pre-assembled Ezifit Struts, Foam Cell shocks, front coil springs, rear parabolic leaf springs, bushes and U bolts
• Warranty: 2 years / 40,000km

Ride height may vary depending on additional front accessories such as winches or bull bars. Alternative spring rates may be required in these cases.

Why Choose Pedders Suspension

• Matched suspension components designed to work together as a system
• Foam Cell shock technology for consistent damping and durability
• Ezifit Struts simplify installation and replace worn factory components
• Backed by a 2 year / 40,000km warranty
