Pedders 2 Inch Suspension Lift Kit for Ford Ranger 2023 on 2.0 Models

This Premium Suspension Lift Kit is designed for Ford Ranger 2.0 models from 2023 onwards. It raises the vehicle by approximately 40mm to improve ground clearance, enhance ride comfort and allow fitment of larger tyres.

Key Features

• 2 inch suspension lift (approx. 40mm)
• Improved ride comfort
• Increased off-road ground clearance
• Adjustable Pedders TrakRyder Foam Cell shock absorbers
• Sintered iron piston shocks with large 40mm bore
• Parabolic rear leaf springs
• Ezifit Struts pre-assembled for easy installation
• Backed by a 2 year / 40,000km warranty

Product Overview

This kit replaces the factory suspension components with matched springs and Adjustable Foam Cell shocks to raise the vehicle while retaining comfortable ride characteristics. It is designed primarily for vehicles that do not regularly carry heavy loads and suits daily driving with occasional off-road use.

The stated lift height is based on a standard vehicle. Additional front accessories such as winches or bull bars may affect the final installed height and could require alternative spring rates. Vehicles used continuously under load or for regular towing should consider heavy-duty suspension options.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.

This kit is comfort-focused and not intended for continuous heavy loads or towing applications.

Technical Specification

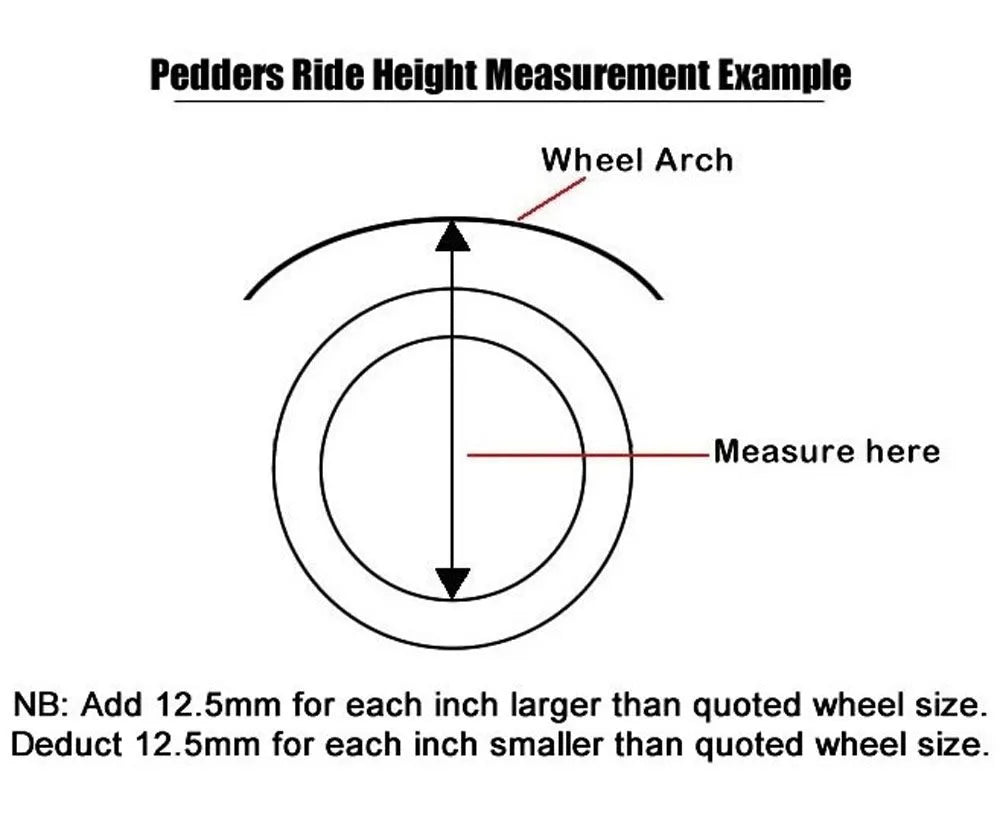

• Front height: 605mm hub centre to wheel arch
• Rear height: Approximately 50mm higher than standard
• Shock bore size: 40mm

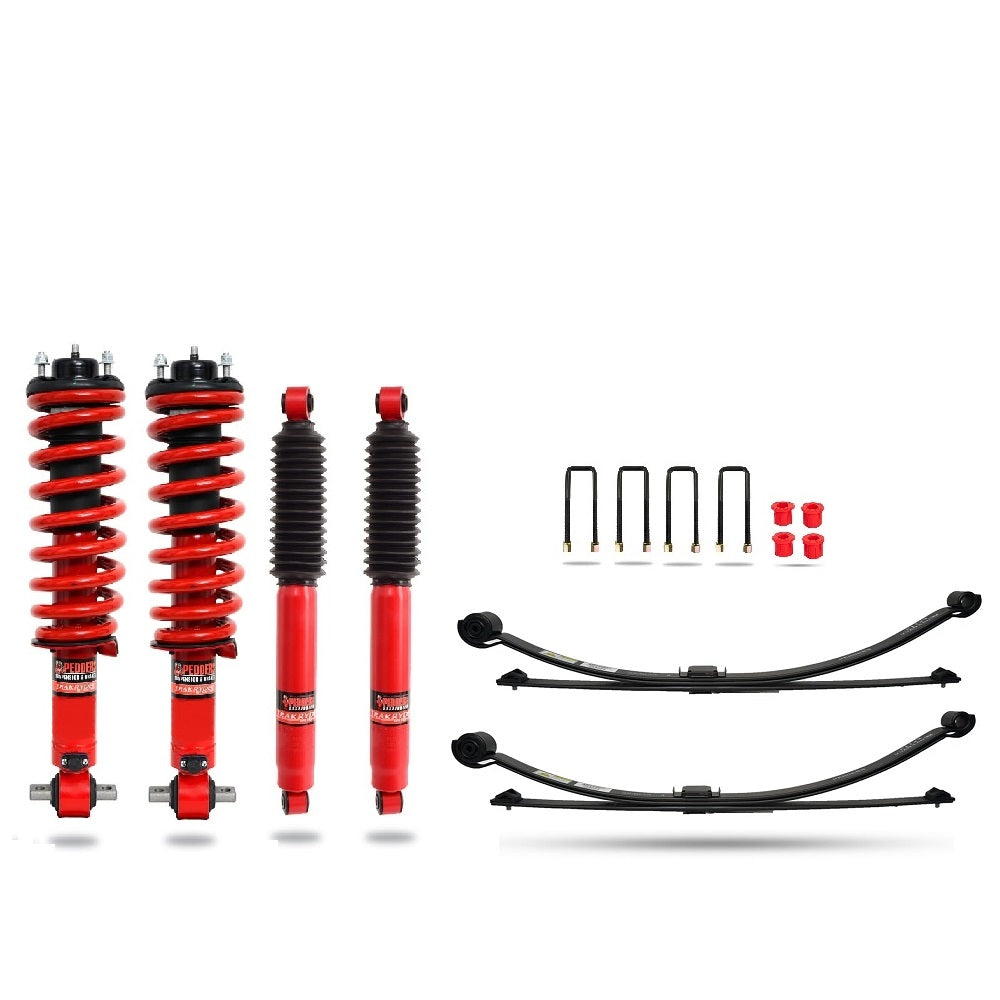

• Included components: Pre-assembled Ezifit Struts, Adjustable Foam Cell shocks, rear parabolic leaf springs, bushes and U bolts
• Fitment: Ford Ranger 2.0 models from 2023 onwards
• Warranty: 2 years / 40,000km

Final ride height may vary depending on additional front-mounted accessories such as winches or bull bars.

Why Choose Pedders

• Matched suspension components engineered to work together as a system
• Adjustable Foam Cell shock technology for controlled and consistent damping
• Ezifit Struts simplify installation and replace worn factory components
• Backed by a 2 year / 40,000km warranty

Compatibility
