Pedders 2 Inch Suspension Lift Kit for Ford Ranger 2023 on 3.0 V6

This Premium Lift Kit is designed for Ford Ranger 3.0 V6 models from 2023 onwards. It raises the vehicle by approximately 50mm to improve ground clearance, enhance appearance and retain ride comfort for everyday driving.

Key Features

• 2 inch suspension lift
• Improved ride comfort
• Increased off-road ground clearance
• Sintered iron piston Foam Cell shocks with large 40mm bore
• Premium grade steel suspension components

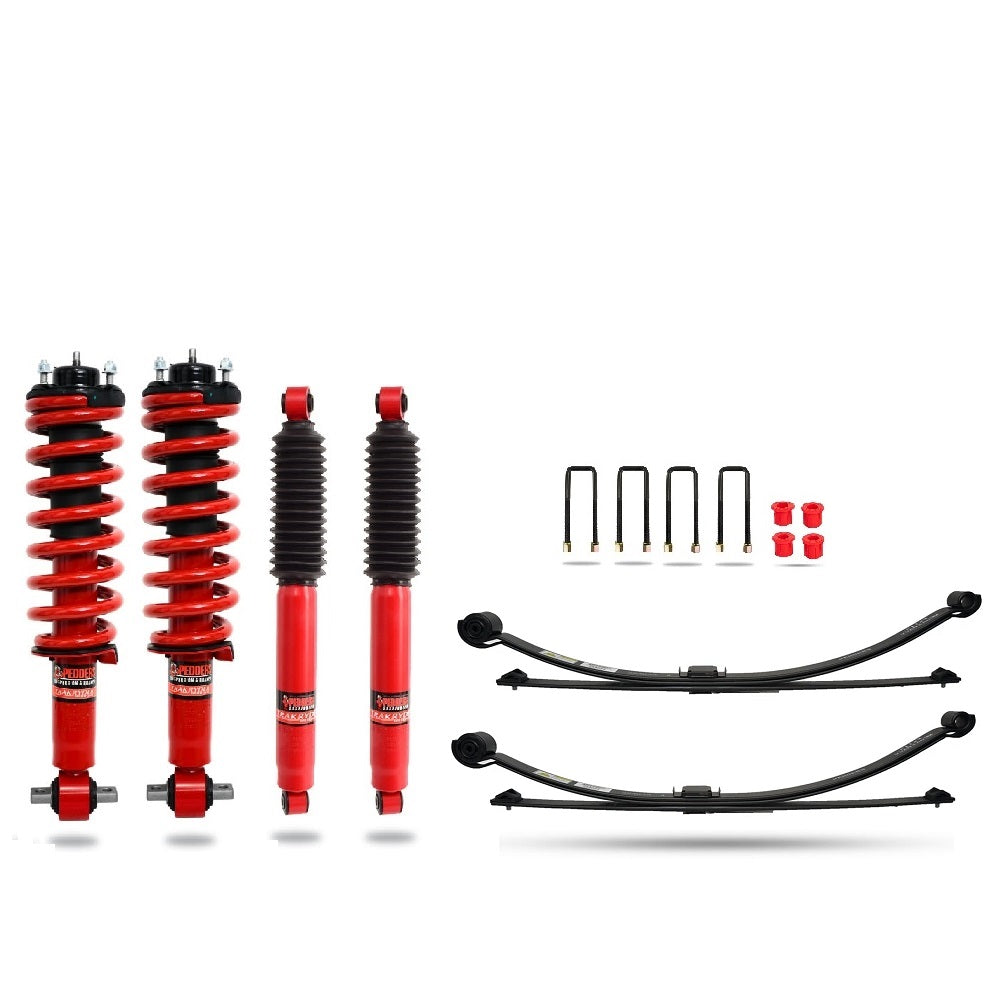

• Includes Ezifit Struts, Foam Cell shocks, rear parabolic leaf springs, bushes and U bolts
• Ezifit Struts pre-assembled for easy installation
• Backed by a 2 year / 40,000km warranty

Product Overview

This kit replaces the factory suspension components with matched springs and Pedders TrakRyder Foam Cell shocks to raise the vehicle while maintaining comfortable ride characteristics. It is intended for vehicles that do not regularly carry heavy loads and suits daily driving with occasional off-road use.

The stated lift height assumes a standard vehicle. Additional front accessories such as winches or bull bars may affect the final installed height and could require alternative spring rates. Vehicles used continuously under load or for regular towing should consider heavy-duty suspension options.

Foam Cell Shock Technology

Foam Cell shock absorbers use a special foam saturated with oil instead of relying on pressurised gas. This design prevents aeration and cavitation, keeping damping forces stable across the full stroke. With greater oil capacity and improved heat dissipation, they resist fade, control temperature, and deliver reliable performance even under demanding use. Their durability makes them well suited for heavy-duty, towing and off-road applications.

Installation & Compatibility

Ezifit Struts are supplied pre-assembled with shock, coil spring, new top mount, bump stop and protective boot. Simply bolt them in without the need for spring compressors or re-using worn parts. The rear springs and hardware are direct replacements for factory components. A professional wheel alignment is recommended after installation for optimum tyre wear and steering response.

This kit is comfort-focused and designed for vehicles that are not normally carrying heavy loads.

Technical Specification

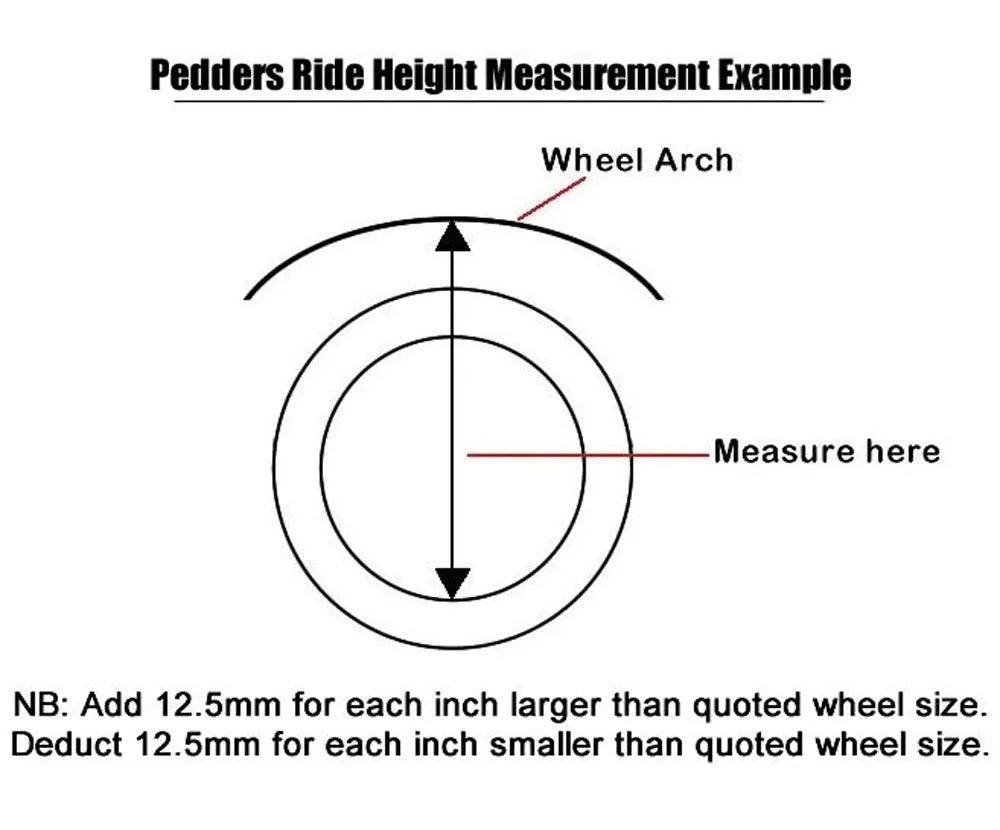

• Front height: 615mm hub centre to wheel arch
• Rear height: Approximately 50mm higher than standard
• Shock bore size: 40mm
• Included components: Pre-assembled Ezifit Struts, Foam Cell shocks, rear parabolic leaf springs, bushes and U bolts
• Fitment: Ford Ranger 2023 on 3.0 V6 models
• Warranty: 2 years / 40,000km

Final ride height may vary depending on additional equipment such as bull bars or winches fitted to the vehicle.

Why Choose Pedders

• Matched suspension components engineered to work together as a complete system
• Proven Foam Cell shock technology for consistent damping performance
• Comprehensive kit supplied with all required installation hardware
• Backed by a 2 year / 40,000km warranty
