290071

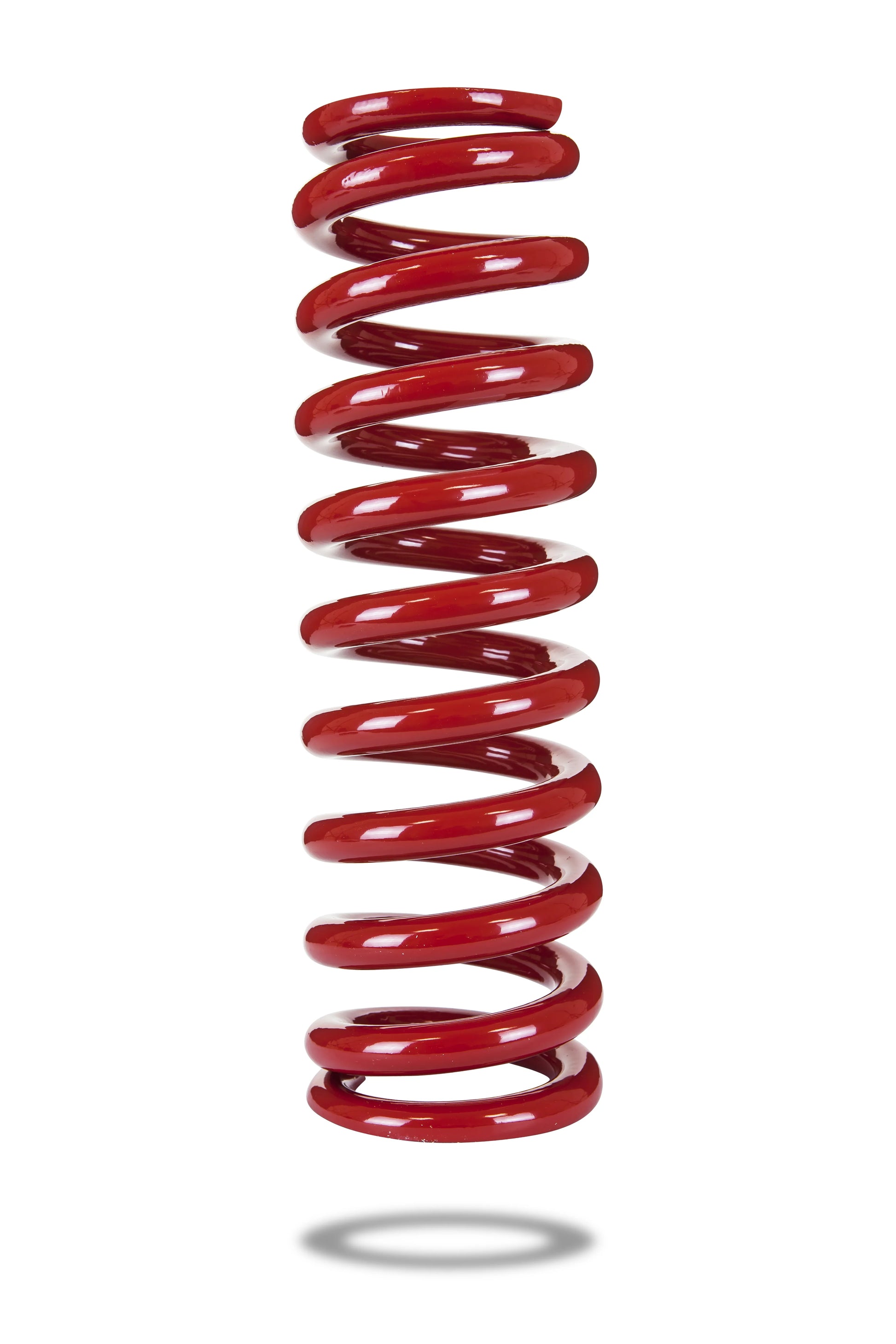

Pedders Coil Spring

Pedders Coil Springs jsou prémiovou řadou pružin Pedders pro různé aplikace. Vyrobeny podle standardů ISO 9001 s tolerancí pouze +/-2 mm na zatížené výšce. Pedders Coil Springs jsou jednoduše bezkonkurenční z hlediska jízdních vlastností, vzhledu vozidla a výkonu. Návrh a výroba vinutých pružin je řemeslo vyžadující přesné dodržování náročných postupů, které jsou všechny klíčové pro výkon finálního produktu.

Tvrdost pružiny musí být přizpůsobena hmotnosti vozidla, která na ní spočívá, a také hmotnosti ostatních komponentů zavěšení a kola. Tvrdost pružiny také ovlivňuje tuhost náklonu karoserie. Snížením náklonu karoserie omezujeme změnu odklonu kola. Velká změna odklonu může výrazně zmenšit kontakt pneumatiky s vozovkou, což výrazně omezuje jízdní schopnosti v zatáčkách.

Jízdní vlastnosti většiny vozidel se výrazně zlepšují zvýšením původní tvrdosti pružiny na optimální úroveň, která maximalizuje přilnavost pneumatik a snižuje náklon karoserie pro lepší ovladatelnost. Zvýšení tvrdosti pružiny nad optimální úroveň naopak snižuje jízdní potenciál, protože pneumatiky začínají přes skoky klouzat, což snižuje přilnavost a bezpečnost.

Vlastnosti a výhody

• Vytáčení za tepla
• Olejové kalení
• Přepalování v peci
• Střelné popichování
• Scragging
• Testování zatížené výšky a tvrdosti
• Práškové lakování a balení

Spring rate [kgf/mm]	13,78
Load at Nominal Ride Height [kgs]	785
Height at Nominal Ride Height [mm]	310
Spring Rate [lbf/in]	770
Inner Diameter [mm]	64.4
Length [mm]	365
Shape - Inner Diameter (Bottom)	Eye
Free Height [mm]	365

Compatibility
Chevrolet	Colorado 2WD	2012-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	For Heavily and constantly loaded applications only.
Isuzu	D Max	2WD Hi-Ride | 2012-2017	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Isuzu	D Max	4WD, 2.5TD | 2012-2017	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Ride height will be 800mm with 17 inch wheels. Clickdetailed Informationto see diagram for explanation. Heavy duty spring only for constantly loaded applications such as winch, bull bar etc. Fits ONLY Pedders shocks part number 154340. Does NOT fit standard shocks or Pedders shock 144340.
Isuzu	MU-X 2WD	3.0lt 4cyl TD | 2012-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Isuzu	MU-X 4WD	3.0lt 4cyl TD | 2012-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	FJ Cruiser	GSJ15R | 2011-2016	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	Fortuner	4WD | 2006-2008	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	Hilux 2WD	GUN135R, Hi-Ride Double Cab Tub Body | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Heavy duty raised spring. Suitable for use on vehicles with extra weight such as a winch or aftermarket bumper etc. Ride height 790mm with 16 inch wheels. For use ONLY with Pedders shocks 154301 and 155002. ONE spring
Toyota	Hilux 2WD	GUN136R, Hi-Ride Double Cab Tub Body | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Heavy duty raised spring. Suitable for use on vehicles with extra weight such as a winch or aftermarket bumper etc. Ride height 790mm with 16 inch wheels. For use ONLY with Pedders shocks 154301 and 155002. ONE spring
Toyota	Hilux 4WD	MK6 GGN25, KUN25R, KUN26R, GGN25, KUN25R, KUN26R | 2005-2010	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Heavy duty raised spring. Suitable for use on vehicles with extra weight such as a winch or aftermarket bumper etc. Ride height 790mm with 16 inch wheels. For use ONLY with Pedders shocks 154301 and 155002. ONE spring
Toyota	Hilux 4WD	MK7 GGN25, KUN25R, KUN26R, GGN25, KUN25R KUN26R | 2010-2015	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Heavy duty raised spring. Suitable for use on vehicles with extra weight such as a winch or aftermarket bumper etc. Ride height 790mm with 16 inch wheels. For use ONLY with Pedders shocks 154301 and 155002. ONE spring
Toyota	Landcruiser	120 series, LC3 LC5, KDJ120, KZJ120, RZJ120 & GRJ12 | 2002-2009	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Raised height spring. Heavy duty. Ride height 745mm with 17 inch wheels. For vehicles with constant extra weight, eg winch, bumper etc. Can ONLY be used with Pedders shocks 152302 & 154302. ONE shock
Toyota	Landcruiser	150 series, KDJ150R | 2009-2015	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	These Coils Must Be Used With Trakryder Foam Cell Strut 154325. For Heavily loaded applications only. Ie Bull Bar, winch
Toyota	Landcruiser	150 series, GRJ150R | 2009-2017	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	These Coils Must Be Used With Trakryder Foam Cell Strut 154325. For Heavily loaded applications only. Ie Bull Bar, winch
Toyota	Landcruiser	150 series, GDJ150R | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	These Coils Must Be Used With Trakryder Foam Cell Strut 154325. For Heavily loaded applications only. Ie Bull Bar, winch
Toyota	Landcruiser Kakadu	150 series, KDJ150R | 2009-2015	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	Landcruiser Kakadu	150 series, GRJ150R | 2009-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	Landcruiser Kakadu	150 series, GDJ150R | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	Prado VX Model	KDJ150R, 3.0lt 4cyl TD | 2009-2015	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	Prado VX Model	GRJ150R, 4.0lt 6cyl ULP | 2009-2016	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	Prado VX Model	GDJ150R, 2.8lt 4cyl TD | 2015-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring
Toyota	Hilux 4WD	MK9 GGN125R, GUN125R, GUN126R | 2020-Onward	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Heavy duty raised spring. Suitable for use on vehicles with extra weight such as a winch or aftermarket bumper etc. Ride height 790mm with 16 inch wheels. For use ONLY with Pedders shocks 154301 and 153307. ONE spring. FRONT
Toyota	Hilux 4WD	MK8 GGN125R, GUN125R, GUN126R | 2015-2020	SPRINGS AND SHOCKS	Front Spring Raised	Pedders Trakryder Coil Spring	Heavy duty raised spring Suitable for use on vehicles with extra weight such as a winch or aftermarket bumper etc Ride height 790mm with 16 inch wheels For use ONLY with Pedders shocks 154301 and 153307 ONE spring
